Series Page
Tasks
- Create or remove a series of points.
- Define the series name, visibility and view type.
- Customize additional series options and legend point options.
- Enable and customize the Top N Values feature.

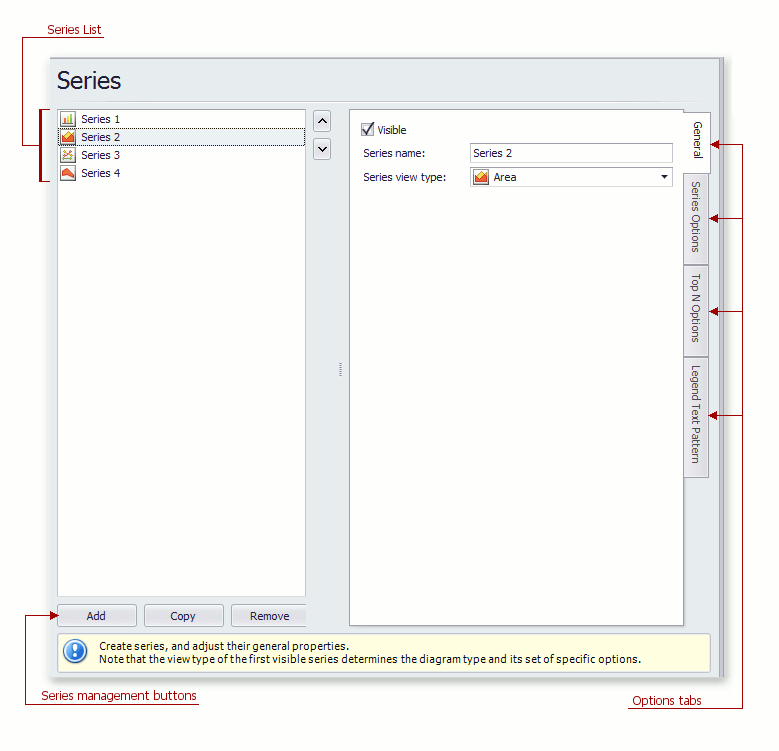

Page Elements
Series List
This list displays all available series. You can click list entries to access properties of the corresponding series. To switch between series, use the ∧ and ∨ buttons.
Series management buttons
Use the Add, Copy and Remove buttons to manage the series collection.
Options tabs
The following tabs are available on this page:
- General
Choose whether the selected series should be visible, define its name, and select a view type. - Series Options
Specifies argument and value scale types, the point sort order, visibility in the legend, whether the legend is checked, and legend text. - Top N Options
Specifies whether the Top N Values feature is enabled, and allows you to control this feature's options. - Legend Text Pattern
Specifies the format of values displayed in the chart legend.
