Control Toolbox

The Control Toolbox lists all available controls and allows you to add them to your report.

To add a control from the Toolbox, do one of the following.

• Double-click an item in the Toolbox for the appropriate control, which will be created at the Detail band's top left corner.

• Drag and drop an item from the Toolbox onto the required location within a report.



• Select an item in the Toolbox, and then click the required location within a report.

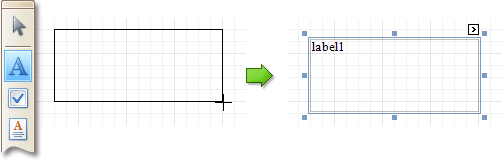

• Select an item in the Toolbox, and then indicate the bounding rectangle by holding the left mouse button.



Select the Pointer item when you need to perform selection, re-positioning or resizing operations. It is automatically selected after you drop a control onto a report.

If the Toolbox is hidden, you can enable it in the Main Menu, by selecting View | Toolbars | Toolbox.
